There are lot of possibilities if you’re in need to parse or write XML files:
- use TXMLDocument (the MSXML wrapper)
- or use xml components like OmniXML, NativeXml, ADOM, SAX, libxml2, DIXml, fcl-XML, Fast XMLParser, SimpleXML
Now here comes another one: VerySimpleXML – a lightweight, one-unit XML reader/writer in under 500 600 lines of code. Use it for small well-formed XML files (like configuration files, etc.).
So we use a configuration file to parse:
http://www.softwareschule.ch/examples/1045_laztest.xml
<CONFIG>
<ProjectOptions>
<Version Value="7"/>
<General>
<Flags>
<LRSInOutputDirectory Value="False"/>
</Flags>
<MainUnit Value="0"/>
<TargetFileExt Value=""/>
<Title Value="TestXMLReder"/>
<Icon Value="0"/>
<UseXPManifest Value="True"/>
<ActiveEditorIndexAtStart Value="0"/>
</General>
<VersionInfo>
<ProjectVersion Value=""/>
</VersionInfo>
<PublishOptions>
<Version Value="2"/>
<IgnoreBinaries Value="False"/>
<IncludeFileFilter Value="*.
(pas|pp|inc|lfm|lpr|lrs|lpi|lpk|sh|xml)"/>
<ExcludeFileFilter Value="*.(bak|ppu|ppw|o|so);*~;backup"/>
</PublishOptions>
<RunParams>
<local>
<FormatVersion Value="1"/>
<CommandLineParams Value="/home/alexs/work/fpc/demo10-
xml/TestXMLReder.lpi"/>
<LaunchingApplication PathPlusParams="/usr/X11R6/bin/xterm -T
'Lazarus Run Output' -e $(LazarusDir)/tools/runwait.sh
$(TargetCmdLine)"/>
</local>
</RunParams>
We changed class name to reflect unit naming (class is now called
TXmlVerySimple instead TVerySimpleXml) and to avoid single namespace conflict I set CL.AddClassN(CL.FindClass(‘TOBJECTlist’),’TXmlNodeListSimple’); and TXmlNodesimple to it:

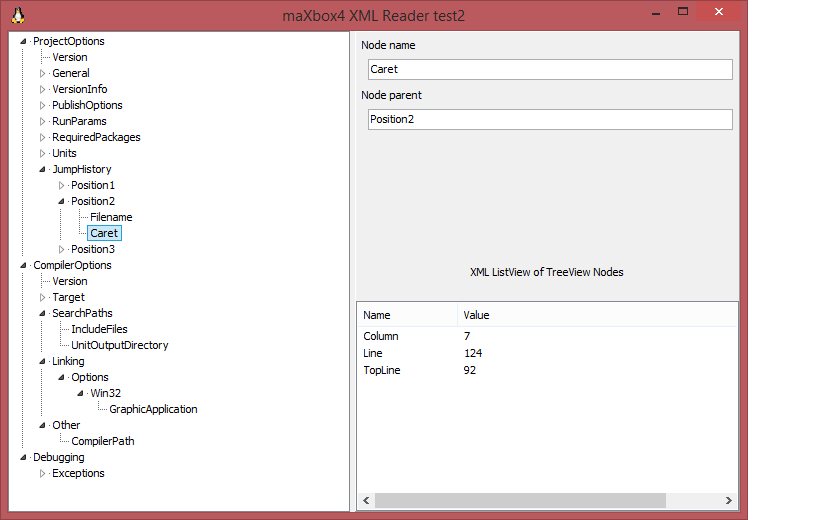

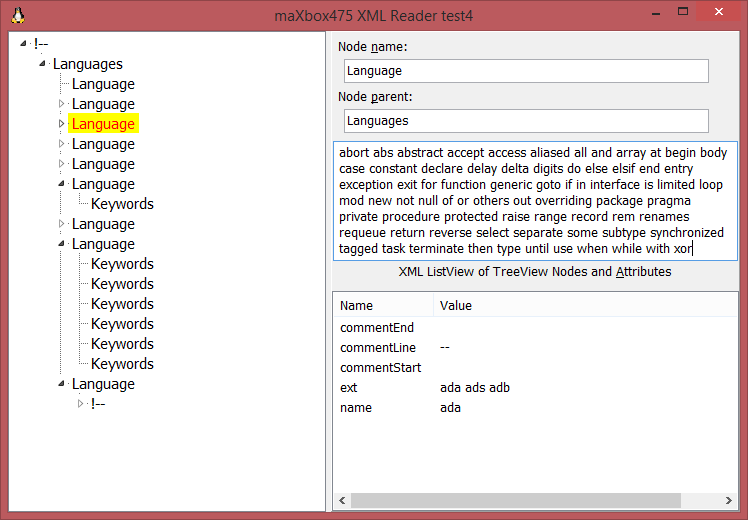

procedure TXMLRederFormTreeView1Click(Sender: TObject);
var Node:TXmlNodesimple; //TDOMNode;
Item:TListItem;
i:Integer;
begin
Edit1.Text:=''; Edit2.Text:='';
if not Assigned(TreeView1.Selected) then exit;
Node:= TXmlNodesimple(TreeView1.Selected.Data);
if not Assigned(Node) then Exit;
Edit1.Text:=Node.NodeName;
Edit2.Text:=Node.parent.nodename;
ListView1.items.BeginUpdate;
ListView1.Items.Clear;
if Assigned(Node.Attributes) then
for i:=0 to Node.Attributes.count-1 do begin
//if node.ChildNodes.count = 0 then Exit;
Item:=ListView1.Items.Add;
TXMLAttribute(Node.attributes[i]).name;
Item.Caption:= TXMLAttribute(Node.Attributes[i]).name;
Item.SubItems.Add(TXMLAttribute(Node.Attributes[i]).Value);
writeln(Node.text);
end;
ListView1.items.EndUpdate;
end;
VerySimpleXML supports just a subset of the XML specification
- load and save from stream or file
- nodes, childs and attributes
- UTF-8 and ANSI encoding
- compact output by setting Xml.Ident := ”;
- method chaining
- Parse, save and load files
procedure DoFill(AOwner:TTreeNode; Node:TXmlNodesimple {TDOMNode});
var i: integer;
AItem:TTreeNode;
begin
if not Assigned(Node) then exit;
for i:= 0 to Node.ChildNodes.Count-1 do begin
AItem:=TreeView1.Items.AddChild(AOwner,
TXMLNodesimple(Node.ChildNodes[i]).nodename);
AItem.Data:= Node.ChildNodes.items[i];
if not Assigned(TreeView1.Selected) then
TreeView1.Selected:= AItem;
DoFill(AItem, TXMLNodesimple(Node.ChildNodes[i]));
end;
end;
XML-Spec for “well-formed” files requires the attributes wrapped in quotation marks.
VerySimpleXML parses well even without them (if they consist of a single word).
The other non-XML-standard behavior of VerySimpleXML is the usage of the < and > tags inside an attribute or text:
XML spec requires you to write < and > but VerySimpleXML parses well if wrapped in quotation marks.
procedure TXMLRederFormParseDoc;
begin
//TreeView1:= TTreeView.Create(self);
TreeView1.Selected:=nil;
TreeView1.Items.BeginUpdate;
TreeView1.Items.Clear;
//DoFill(nil, TDOMNode(FDoc));
DoFill(nil, TXMLNodesimple(FDoc.root));
TreeView1.Items.EndUpdate;
TXMLRederFormTreeView1Click(nil);
//Treeview1.FullExpand();
end;
Script can be found: http://www.softwareschule.ch/examples/xmldemo2.txt
And a useful blog: http://blog.spreendigital.de/2011/11/10/verysimplexml-a-lightweight-delphi-xml-reader-and-writer/
Some simple usage example:
uses Xml.VerySimple;
var
Xml: TXmlVerySimple;
Node, Child: TXmlNode;
begin
Xml:= TXmlVerySimple.Create;
Xml.LoadFromFile('example.xml');
Xml.Root.Find('book', 'id', 'bk102').Find('author').Text := 'Dein, Carol Max';
Node:= Xml.Root.AddChild('book');
Child:= Node.AddChild('author');
Child.Text:= 'Barger, Al';
Child.Attribute['type']:= 'topseller';
Node.AddChild('title').SetAttribute('lang','en').SetText('A big View');
Xml.SaveToFile('output.xml');
Xml.Free;
end;
The Xml.Root.Find() has 3 different signatures, cause in maXbox function overloading don’t works.
{ RegisterMethod(‘Function Find( Name : String) : TXmlNode;’);
RegisterMethod(‘Function Find1( Name, Attribute : String) : TXmlNode;’);
RegisterMethod(‘Function Find2( Name, Attribute, Value : String) : TXmlNode;’);
RegisterMethod(‘Function FindNodes( Name : String) : TXmlNodeList’);
}
Simple Example in a Script
First we define the XML file as a const:
const TESTCONST =
'<?xml version="1.0" encoding="UTF-8"?>'
+'<book> '
+' <name>A Song of Ice and Fire</name> '
+' <author>George R. R. Martin</author> '
+' <language>English</language> '
+' <genre>Epic fantasy</genre> '
+'</book> ';
Then we call the routine to add a child with a new book:
procedure XML_testroutine2;
var
Xml: TXmlVerySimple;
Node, Child: TXmlNodeSimple;
strm: TStream;
begin
Xml:= TXmlVerySimple.Create;
strm:= TStringStream.Create('');
StringtoStream(TESTCONST, strm)
Xml.LoadFromStream(strm);
writeln(itoa(strm.size))
writeln(xml.text)
Node:= Xml.Root.AddChild('bookdetail');
Child:= Node.AddChild('author');
Child.Text:= 'Kleiner, Al';
Child.Attribute['type']:= 'topseller';
Node.AddChild('title').SetAttribute('lang','en').SetText('A big View');
Xml.SaveToFile(exepath+'examples\bookout.xml');
Xml.Free;
strm.Free;
openfile(exepath+'examples\bookout.xml');
end;
Let’s take a look at the modified bookout.xml file:
<?xml version="1.0" encoding="UTF-8" ?>
<book>
<name>A Song of Ice and Fire</name>
<author>George R. R. Martin</author>
<language>English</language>
<genre>Epic fantasy</genre>
<bookdetail>
<author type="topseller">Kleiner, Al</author>
<title lang="en">A big View</title>
</bookdetail>
</book>
This is a simple XML document. You can understand the data, by just looking at the document.
https://beginnersbook.com/2018/10/xml-example/

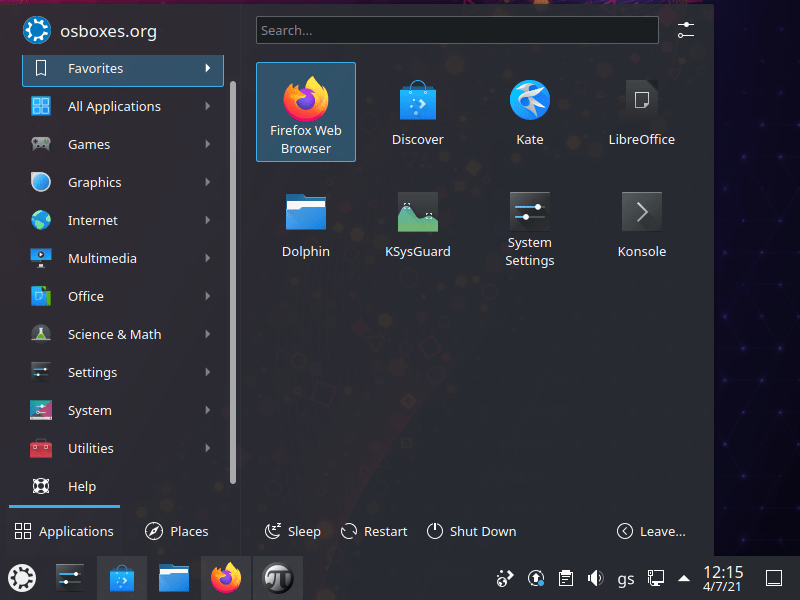

The beta of Hirsute Hippo (to become 21.04 in April) has now been released, and is available for download. Also for Kubuntu, KDE, and Qt developers.
